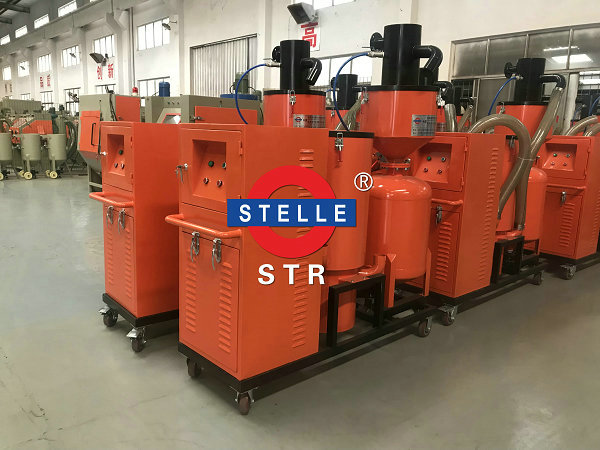

無塵自動循環回收噴砂機系列

◆產品的特色 Product features（請從上向下閱覽產生大量成功案例照片視頻供考慮）

環保型循環回收式噴砂機它集噴砂、回收、循環、分離、除塵于一體，無污染及砂料四處飛揚現象，是新一代的環保型噴砂設備。是我公司為繁重的噴砂工作設計生產的多用途、大工作半徑、高效率的新型環保噴砂設備。根椐負壓產生裝置不同，分為電動和全氣動兩大種機型。該設備采用壓縮空氣做動力，將磨料高速噴射到工件表面，經過磨料沖擊把工件表面銹污除去，使表面達到一定的清潔度和粗糙度，再通過真空泵（或多級真空發生器）產生的負壓，回收砂料和粉塵，并通過設備的砂塵分離系統將完整的磨料分離繼續循環使用，粉塵與銹污進入集塵桶。在手把開關控制下，設備的噴砂、回砂、砂塵分離、砂料循環、粉塵過濾等所有動作自行完成，工作環境干凈無污染，作業現場達到“GB103328-10333-89”生產加工水汽有害氣體衛生情況標準。砂料、有害氣體自己回籠、分離法、循環系統實用，工作的工地純凈無有害氣體污染破壞。機環保型的設計，大大大大調節了工友的勞功硬度和活動壞境標配除塵器原理安裝，可自己清掉濾心積塵。內置式分水過濾水器。可對縮小冷空氣開始再次水和油分離出來。自己放料，將吸砂頭添加圖片砂料中，開機正空泵軟件系統將自己放料。PLC可和程序編寫掌控（加裝），料位報案功效(標準配置)。設置有調壓旋扭、反吹風按鈕圖片。比較穩定的氣控設施與爐料閥。業務圓弧20-70米，表面能加工檔次達Sa2.5-3級。設置健康防滲水外接24v電源家用插座轉換開關插口，有利實際操控。設置操控外接24v電源航班家用插座轉換開關插口有利實際操控。個性外觀的防污操控面板價格與電子掌握系統箱。維修與需要維護檢修尤其是有利。車式柜體結構的，防水防污，中國移動有利。柜體門框所采用快鍵門瑣接入，拆御有利。手將轉換開關操控（電子掌握系統DC24V）。一機三用，有開發式、工業化吸砂器、健康型多種設備的功能表。噴砂臺式主機采用了特色管控電路開關，崗位經濟壓力在0.2Kpa-0.8Kpa依據內無數個緩解，可實現多種產品的噴砂施工工藝規定。施用依據：除銹防銹、除漆面、對接焊縫處理（是指不銹鋼材質材質焊接件簡述較近的去黑、去焊渣正確進行正確處理）去鋸齒狀、飛邊、防氧化皮、不銹鋼材質材質，鋁型材表面上上的高雅型亞光正確進行正確處理（耐污性良好、可掩蓋刮傷）、去瀝青鋼筋混凝土土、石雕表面上上污圬等正確進行正確處理。

Features: Environmental protection cycle recovery type sandblasting machine sets of sandblasting, recycling, circulation, separation, dust removal in a body, no pollution and sand material flying around phenomenon, is a new generation of environmental protection sandblasting equipment. The machine is our company for heavy gush arenaceous job design of multi-purpose, the great work radius, high efficiency of the new environmental protection sandblasting equipment. Root tree produced negative pressure, divided into different device and electric pneumatic two types of all. The equipment adopts compressed air do motive force, abrasive high-speed spray into the surface of workpiece, through the surface of workpiece abrasive impact and remove rust surface, it reaches a certain cleanness and roughness, again through the vacuum pump (or multi-stage vacuum generator) creates negative pressure, recycling waste materials and dust, sand and through the equipment of dust separation system will complete abrasive separation recycling, and continue to dust pollution into the dust collection barrel rust. In hand the switch control, equipment of sandblasting, back to the sand, sand dust separation, sand material circulation, dust filter to complete all action, working environment clean no pollution, work safety to "GB103328-10333 89" workshop air dust health standard. The waste materials, dust the automatic recovery, separation and recycling, the work site clean and free of dust pollution. Environmental protection equipment design, has greatly improved the labor intensity and work environment with blower, can automatically remove dust filter. Built-in water filter. May to the compressed air in secondary water-oil separation. Automatic feeding, will suck sand head into the waste materials, vacuum pump system will start in the automatic feeding. PLC programmable control (optional), material place alarm function (optional). With pressure regulating knobs, counter blowing button. Steady air control device and abrasive valve. Work 20-70 meters radius, surface treatment level of Sa2.5-3 grade. With safety waterproof power socket plug, convenient operation. Configuration control power plug sockets aviation easy operation. Unique beautiful dustproof control panel and the electric. Maintenance and overhaul special convenient. The car type structure, rain dustproof, convenient to move. The cabinet door plank fast door, more convenient to assemble and disassemble zoar connection. The switch control (hand electric control DC24V). One machine with three, with open, industrial suck sand device, environmental protection function of three equipment. Gush arenaceous host machine adopts special control circuit, working pressure in 0.2-0.8 range Kpa Kpa arbitrarily regulate, and can satisfy different requirements of sandblasting process workpiece. Use scope: derusting, except for paint, weld processing (including stainless steel weld and its surrounding the to black, welding slag processing) to deburr, flash, stainless steel, aluminum oxide skin, the elegant type inferior smooth surface treatment (to bear or endure corrupt the gender is good, can cover scratch), to concrete, stone carving surface dirt processing.

◆首要技術應用產品參數 Main technical parameters

機氣參數 Model	STR-B型無塵自動循環回收式噴砂機
工作的供電 Work power	380V 50HZ
氣流壓力值 Air pressure	5-7kg/cm2
耗氣量 Gas consumption	3m3/min
三相異步電機工作功率 Motor power	4kw
工作上學習效率 Work efficiency	6-10m2
工作的圓的半徑 Work radius	10m 可結合意愿長些，主要咨詢了解。電話客服
上班行駛 Work form	全自動反復回收利用Automatic cycle recovery
清除級別 Clean level	Sa2-3
粗糙，度 Roughness	60μm左右兩
總重量 Weight	260kg
外觀簡約時尚長寬比 Shape dimension	1380×830×1700mm
砂料尺寸 Sand material specifications	20-100#往上（1.0mm-0.04mm）

◆適用性區間 Applicable scope

1.干凈標準要求高且無不管什么煙氣凈化機的施工地點；

2.辦理等級劃分較高。

1. High environmental protection requirement and without any dust removal equipment occasion;

2. Higher processing level.

操作的范圍：除銹設備、除涂料焊接外理去鋸齒狀、飛邊、被氧化皮不銹鋼板、鋁合金單單從表面的典雅型亞光治理（耐污性很不錯、可遮蓋住劃痕）去混泥土土、石雕外層污圬等治理。

（準確素材可參考價值A型或詳詢我集團公司）

Applicable scope: derusting, clean paint processing to weld burr, flash, stainless steel, aluminum oxide skin surface elegant type to bear or endure corrupt processing (matt better properties, can cover scratch) to concrete, stone carving surface dirt processing. (specific information can be A reference type or call our company)

◆ 產品的特色 Product features

此噴砂機戶外工作噴砂無粉塵污染，自動循環回收的環保型設備，我公司研發的C型無塵噴砂機屬于環保型無粉塵噴砂處理機，此機體積已收縮，作用可以說是便野外建設聯通便，大的減少了勞動課標準，如果治療學習效率在在國內累似型物料快速；獲得寬廣雇主的不同認同感，并早已經獲得了比較廣泛的運行和運行！（特定個人信息可學習A型或咨詢我單位）

features: this machine introduces advanced foreign technology research and development of outdoor work gush arenaceous no dust pollution, automatic cycle recovery of environmental protection equipment. Our company’s C type clean sandblasting machine belong to the most advanced domestic environmental protection no dust gush arenaceous processor, the machine has to minimize, volume compression purpose is convenient outdoor construction convenient to move, greatly reduce the labor intensity, and processing efficiency in domestic products with type fastest; Our customers get a consensus, and has been widely promotion and use! (specific information can be A reference type or call our company)

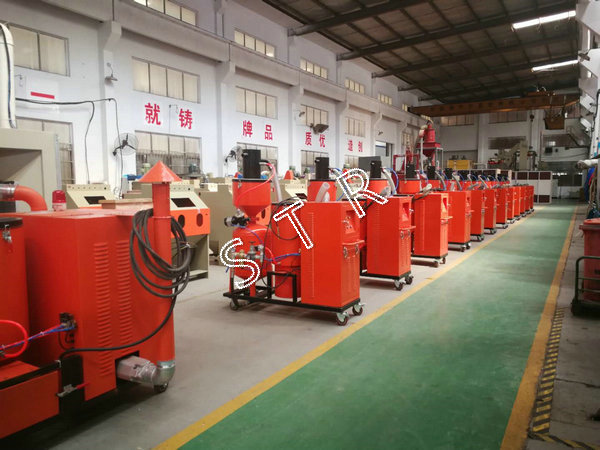

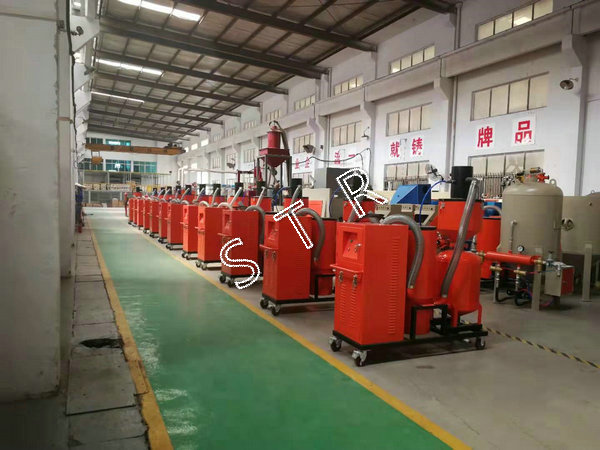

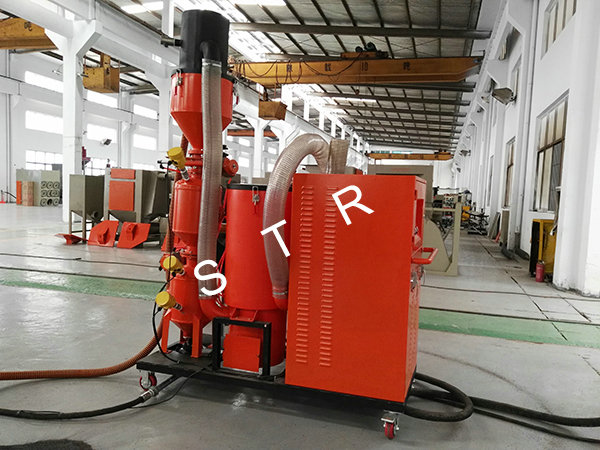

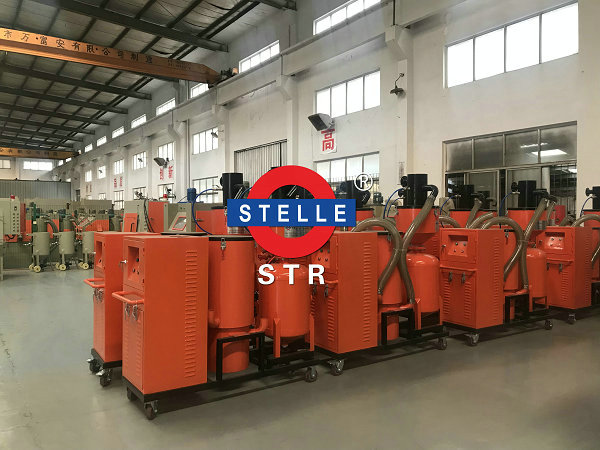

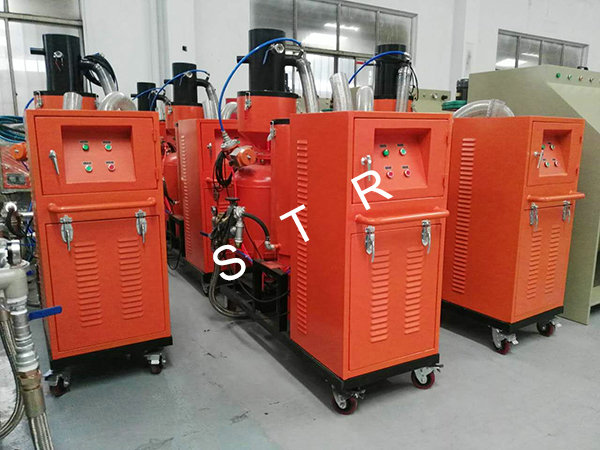

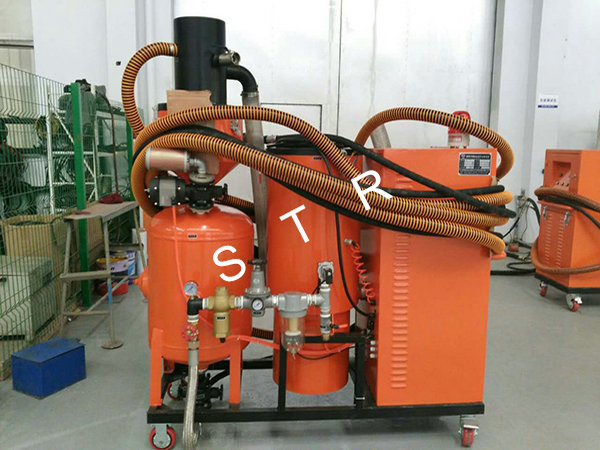

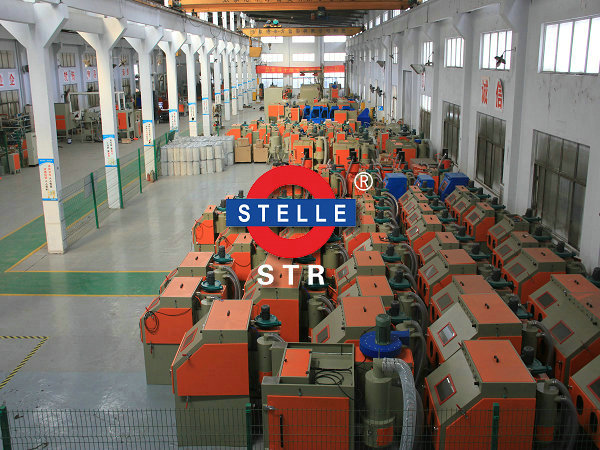

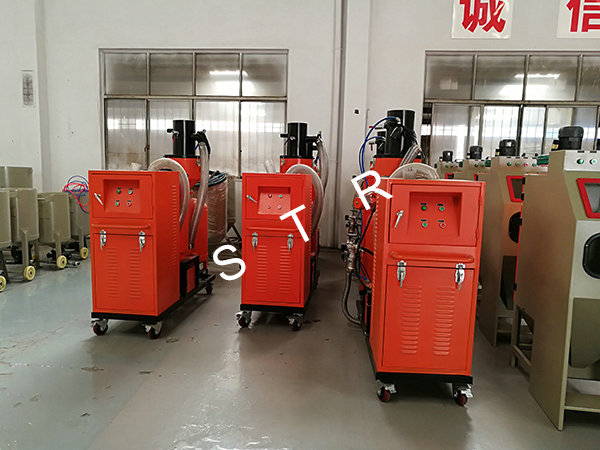

部份無塵自動循環環保型噴砂機案例:
